Attribute#

First thing, let's get the information for Attribute:

/opt/jans/jans-cli/config-cli.py --info Attribute
In return, we get a list of Operations ID as below:

Operation ID: get-attributes
  Description: Gets all attributes. Optionally max-size of the result, attribute status and pattern can be provided.
  Parameters:
  limit: Search size - max size of the results to return. [integer]
  pattern: Search pattern. [string]
  status: Status of the attribute [string]
Operation ID: post-attributes
  Description: Adds a new attribute.
  Schema: /components/schemas/GluuAttribute
Operation ID: put-attributes
  Description: Updates an existing attribute.
  Schema: /components/schemas/GluuAttribute
Operation ID: get-attributes-by-inum
  Description: Gets an attribute based on inum.
  url-suffix: inum
Operation ID: delete-attributes-by-inum
  Description: Deletes an attribute based on inum.
  url-suffix: inum
Operation ID: patch-attributes-by-inum
  Description: Partially modify a GluuAttribute.
  url-suffix: inum
  Schema: Array of /components/schemas/PatchRequest

To get sample shema type /opt/jans/jans-cli/config-cli.py --schema <schma>, for example /opt/jans/jans-cli/config-cli.py --schema /components/schemas/PatchRequest

We have discussed here about each of this operations ID with few examples to understand how these really works.

Table of Contents#

Get Attributes#

Prerequisite: Know how to use the Janssen CLI in command-line mode

As we know, Attributes are individual pieces of user data, like uid or email, that are required by applications in order to identify a user and grant access to protect resources. The user attributes that are available in your Janssen Server can be found by using this operation-ID. If we look at the description below:

Operation ID: get-attributes
  Description: Gets all attributes. Optionally max-size of the result, attribute status and pattern can be provided.
  Parameters:
  limit: Search size - max size of the results to return. [integer]
  pattern: Search pattern. [string]
  status: Status of the attribute [string]

To get all the attributes without any arguments, run the following command:

/opt/jans/jans-cli/config-cli.py --operation-id get-attributes

To get attributes with passing the arguments, let's retrieve randomly limit:5:

/opt/jans/jans-cli/config-cli.py --operation-id get-attributes --endpoint-args limit:5

It will return any 5 attributes randomly:

Getting access token for scope https://jans.io/oauth/config/attributes.readonly
Calling with params limit=5
[
  {
    "dn": "inum=B4B0,ou=attributes,o=jans",
    "inum": "B4B0",
    "selected": false,
    "name": "givenName",
    "displayName": "First Name",
    "description": "Given name(s) or first name(s) of the End-User.Note that in some cultures, people can have multiple given names;all can be present, with the names being separated by space characters.",
    "dataType": "STRING",
    "status": "ACTIVE",
    "lifetime": null,
    "sourceAttribute": null,
    "salt": null,
    "nameIdType": null,
    "origin": "jansPerson",
    "editType": [
      "USER",
      "ADMIN"
    ],
    "viewType": [
      "USER",
      "ADMIN"
    ],
    "usageType": null,
    "claimName": "given_name",
    "seeAlso": null,
    "saml1Uri": "urn:mace:dir:attribute-def:givenName",
    "saml2Uri": "urn:oid:2.5.4.42",
    "urn": "urn:mace:dir:attribute-def:givenName",
    "scimCustomAttr": null,
    "oxMultiValuedAttribute": false,
    "custom": false,
    "requred": false,
    "attributeValidation": null,
    "tooltip": null
  },
  {
    "dn": "inum=29DA,ou=attributes,o=jans",
    "inum": "29DA",
    "selected": false,
    "name": "inum",
    "displayName": "Inum",
    "description": "XRI i-number, persistent non-reassignable identifier",
    "dataType": "STRING",
    "status": "ACTIVE",
    "lifetime": null,
    "sourceAttribute": null,
    "salt": null,
    "nameIdType": null,
    "origin": "jansPerson",
    "editType": null,
    "viewType": [
      "USER",
      "ADMIN"
    ],
    "usageType": null,
    "claimName": "inum",
    "seeAlso": null,
    "saml1Uri": "urn:mace:dir:attribute-def:inum",
    "saml2Uri": "urn:oid:1.3.6.1.4.1.48710.1.3.117",
    "urn": "urn:jans:dir:attribute-def:inum",
    "scimCustomAttr": null,
    "oxMultiValuedAttribute": false,
    "custom": false,
    "requred": false,
    "attributeValidation": null,
    "tooltip": null
  },
  {
    "dn": "inum=B52A,ou=attributes,o=jans",
    "inum": "B52A",
    "selected": false,
    "name": "jansPrefUsrName",
    "displayName": "Preferred Username",
    "description": "A domain issued and managed identifier for the person.Subject - Identifier for the End-User at the Issuer.",
    "dataType": "STRING",
    "status": "ACTIVE",
    "lifetime": null,
    "sourceAttribute": null,
    "salt": null,
    "nameIdType": null,
    "origin": "jansPerson",
    "editType": [
      "ADMIN"
    ],
    "viewType": [
      "USER",
      "ADMIN"
    ],
    "usageType": null,
    "claimName": "preferred_username",
    "seeAlso": null,
    "saml1Uri": "urn:mace:dir:attribute-def:preferredUsername",
    "saml2Uri": "urn:oid:1.3.6.1.4.1.48710.1.3.320",
    "urn": "http://openid.net/specs/openid-connect-core-1_0.html/StandardClaims/preferred_username",
    "scimCustomAttr": null,
    "oxMultiValuedAttribute": false,
    "custom": false,
    "requred": false,
    "attributeValidation": null,
    "tooltip": null
  },
  {
    "dn": "inum=64A0,ou=attributes,o=jans",
    "inum": "64A0",
    "selected": false,
    "name": "profile",
    "displayName": "Profile URL",
    "description": "URL of the End-User's profile page. The contents of this Web page SHOULD be about the End-User.",
    "dataType": "STRING",
    "status": "ACTIVE",
    "lifetime": null,
    "sourceAttribute": null,
    "salt": null,
    "nameIdType": null,
    "origin": "jansPerson",
    "editType": [
      "USER",
      "ADMIN"
    ],
    "viewType": [
      "USER",
      "ADMIN"
    ],
    "usageType": null,
    "claimName": "profile",
    "seeAlso": null,
    "saml1Uri": "urn:mace:dir:attribute-def:profile",
    "saml2Uri": "urn:oid:1.3.6.1.4.1.48710.1.3.321",
    "urn": "http://openid.net/specs/openid-connect-core-1_0.html/StandardClaims/profile",
    "scimCustomAttr": null,
    "oxMultiValuedAttribute": false,
    "custom": false,
    "requred": false,
    "attributeValidation": null,
    "tooltip": null
  },
  {
    "dn": "inum=42E0,ou=attributes,o=jans",
    "inum": "42E0",
    "selected": false,
    "name": "uid",
    "displayName": "Username",
    "description": "A domain issued and managed identifier for the person.Subject - Identifier for the End-User at the Issuer.",
    "dataType": "STRING",
    "status": "ACTIVE",
    "lifetime": null,
    "sourceAttribute": null,
    "salt": null,
    "nameIdType": null,
    "origin": "jansPerson",
    "editType": [
      "ADMIN"
    ],
    "viewType": [
      "USER",
      "ADMIN"
    ],
    "usageType": null,
    "claimName": "user_name",
    "seeAlso": null,
    "saml1Uri": "urn:mace:dir:attribute-def:uid",
    "saml2Uri": "urn:oid:0.9.2342.19200300.100.1.1",
    "urn": "urn:mace:dir:attribute-def:uid",
    "scimCustomAttr": null,
    "oxMultiValuedAttribute": false,
    "custom": false,
    "requred": false,
    "attributeValidation": null,
    "tooltip": null
  }
]

To get attributes with pattern & status:

/opt/jans/jans-cli/config-cli.py --operation-id get-attributes --endpoint-args limit:5,pattern:profile,status:ACTIVE
In return, we get a list of attribute that are matched with the given pattern and status:

Getting access token for scope https://jans.io/oauth/config/attributes.readonly
Calling with params limit=5&pattern=profile&status=ACTIVE
[
  {
    "dn": "inum=EC3A,ou=attributes,o=jans",
    "inum": "EC3A",
    "selected": false,
    "name": "picture",
    "displayName": "Picture URL",
    "description": "URL of the End-User's profile picture",
    "dataType": "STRING",
    "status": "ACTIVE",
    "lifetime": null,
    "sourceAttribute": null,
    "salt": null,
    "nameIdType": null,
    "origin": "jansPerson",
    "editType": [
      "USER",
      "ADMIN"
    ],
    "viewType": [
      "USER",
      "ADMIN"
    ],
    "usageType": null,
    "claimName": "picture",
    "seeAlso": null,
    "saml1Uri": "urn:mace:dir:attribute-def:picture",
    "saml2Uri": "urn:oid:1.3.6.1.4.1.48710.1.3.322",
    "urn": "http://openid.net/specs/openid-connect-core-1_0.html/StandardClaims/picture",
    "scimCustomAttr": null,
    "oxMultiValuedAttribute": false,
    "custom": false,
    "requred": false,
    "attributeValidation": null,
    "tooltip": null
  },
  {
    "dn": "inum=64A0,ou=attributes,o=jans",
    "inum": "64A0",
    "selected": false,
    "name": "profile",
    "displayName": "Profile URL",
    "description": "URL of the End-User's profile page. The contents of this Web page SHOULD be about the End-User.",
    "dataType": "STRING",
    "status": "ACTIVE",
    "lifetime": null,
    "sourceAttribute": null,
    "salt": null,
    "nameIdType": null,
    "origin": "jansPerson",
    "editType": [
      "USER",
      "ADMIN"
    ],
    "viewType": [
      "USER",
      "ADMIN"
    ],
    "usageType": null,
    "claimName": "profile",
    "seeAlso": null,
    "saml1Uri": "urn:mace:dir:attribute-def:profile",
    "saml2Uri": "urn:oid:1.3.6.1.4.1.48710.1.3.321",
    "urn": "http://openid.net/specs/openid-connect-core-1_0.html/StandardClaims/profile",
    "scimCustomAttr": null,
    "oxMultiValuedAttribute": false,
    "custom": false,
    "requred": false,
    "attributeValidation": null,
    "tooltip": null
  }
]

Creating an Attribute#

To create SSO for certain applications, you may need to add custom attributes to your Janssen Server. Custom attributes can be added by using this operation-ID. It has a schema file where it's defined: the properties it needs to be filled to create a new custom attribute.

Operation ID: post-attributes
  Description: Adds a new attribute.
  Schema: /components/schemas/GluuAttribute
Before adding a new attribute, let's get sample schema:
/opt/jans/jans-cli/config-cli.py --schema /components/schemas/GluuAttribute > /tmp/attribute.json
It will return as below:

{
  "dn": null,
  "inum": null,
  "selected": true,
  "name": "name, displayName, birthdate, email",
  "displayName": "string",
  "description": "string",
  "dataType": "STRING",
  "status": "REGISTER",
  "lifetime": null,
  "sourceAttribute": null,
  "salt": null,
  "nameIdType": null,
  "origin": null,
  "editType": [],
  "viewType": "array",
  "usageType": [],
  "claimName": null,
  "seeAlso": null,
  "saml1Uri": null,
  "saml2Uri": null,
  "urn": null,
  "scimCustomAttr": true,
  "oxMultiValuedAttribute": true,
  "custom": true,
  "requred": true,
  "attributeValidation": {
    "regexp": null,
    "minLength": null,
    "maxLength": null
  },
  "tooltip": null
}

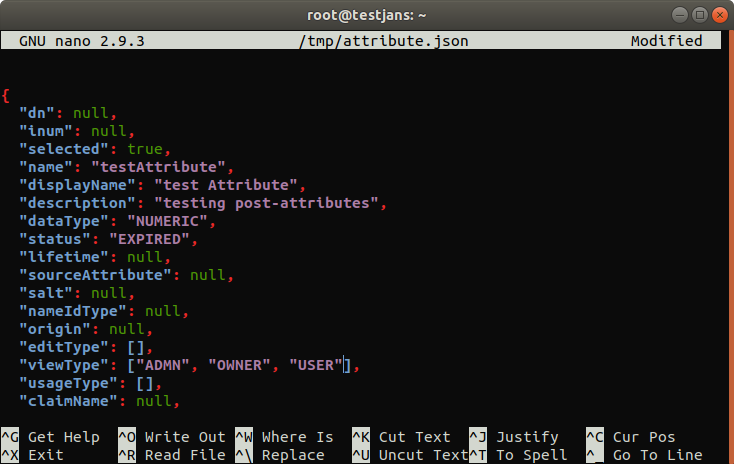

Modify it to update attribute name, display name, view type:
nano /tmp/attribute.json


Now, let's add this attribute using post-attributes:

/opt/jans/jans-cli/config-cli.py --operation-id post-attributes --data /tmp/attribute.json
It will create a new attribute into the Attribute list with updated inum & dn:

Getting access token for scope https://jans.io/oauth/config/attributes.write
Server Response:
{
  "dn": "inum=256135af-56eb-43f3-9583-d7e9fc75c672,ou=attributes,o=jans",
  "inum": "256135af-56eb-43f3-9583-d7e9fc75c672",
  "selected": false,
  "name": "testAttribute",
  "displayName": "test Attribute",
  "description": "testing post-attributes",
  "dataType": "CERTIFICATE",
  "status": "REGISTER",
  "lifetime": null,
  "sourceAttribute": null,
  "salt": null,
  "nameIdType": null,
  "origin": null,
  "editType": null,
  "viewType": [
    "ADMIN",
    "OWNER",
    "USER"
  ],
  "usageType": null,
  "claimName": null,
  "seeAlso": null,
  "saml1Uri": null,
  "saml2Uri": null,
  "urn": null,
  "scimCustomAttr": false,
  "oxMultiValuedAttribute": false,
  "custom": false,
  "requred": false,
  "attributeValidation": {
    "regexp": null,
    "minLength": null,
    "maxLength": null
  },
  "tooltip": null
}

Updating an Attribute#

This operation-id can be used to update an existing attribute information. The Janssen Server administrator can make changes to attributes, such as changing their status to active/inactive by using this operation-ID. Let's look at the schema:

/opt/jans/jans-cli/config-cli.py --schema /components/schemas/GluuAttribute > /tmp/attrib.json

You must see the similar schema while performed in post-attributes operation.

To update an existing attribute, we have to ensure following properties in the schema file.

In our case, I have modified the schema file as below:

{
  "dn": "inum=b691f2ab-a7db-4725-b85b-9961575b441f,ou=attributes,o=jans",
  "inum": "b691f2ab-a7db-4725-b85b-9961575b441f",
  "selected": true,
  "name": "testAttribute",
  "display_name": "testAttribute",
  "description": "testing put-attribute",
  "data_type": "STRING",
  "status": "ACTIVE",
  "edit_type": ["ADMIN", "OWNER"],
  "view_type": ["ADMIN", "OWNER", "USER"]
}

Now if we run the below command line:

/opt/jans/jans-cli/config-cli.py --operation-id put-attributes --data /tmp/attrb.json

Getting access token for scope https://jans.io/oauth/config/attributes.write
Server Response:
{
  "dn": "inum=b691f2ab-a7db-4725-b85b-9961575b441f,ou=attributes,o=jans",
  "inum": "b691f2ab-a7db-4725-b85b-9961575b441f",
  "selected": false,
  "name": "testAttribute",
  "displayName": "testAttribute",
  "description": "testing put-attribute",
  "dataType": "STRING",
  "status": "ACTIVE",
  "lifetime": null,
  "sourceAttribute": null,
  "salt": null,
  "nameIdType": null,
  "origin": null,
  "editType": [
    "ADMIN",
    "OWNER"
  ],
  "viewType": [
    "ADMIN",
    "OWNER",
    "USER"
  ],
  "usageType": null,
  "claimName": null,
  "seeAlso": null,
  "saml1Uri": null,
  "saml2Uri": null,
  "urn": null,
  "scimCustomAttr": null,
  "oxMultiValuedAttribute": false,
  "custom": false,
  "requred": false,
  "attributeValidation": null,
  "tooltip": null,
  "jansHideOnDiscovery": null
}

It just replace the previous value with new one.

Get Attribute by inum#

As we know, There are a lot of attributes available in the Janssen Server including custom attributes as well. You may want to know details information for a single attribute uniquely identified by inum. Getting an attribute information by using its inum is pretty simple.

/opt/jans/jans-cli/config-cli.py --operation-id get-attributes-by-inum --url-suffix inum:b691f2ab-a7db-4725-b85b-9961575b441f

It will show all details information of the selected Attribute.

Getting access token for scope https://jans.io/oauth/config/attributes.readonly
{
  "dn": "inum=b691f2ab-a7db-4725-b85b-9961575b441f,ou=attributes,o=jans",
  "inum": "b691f2ab-a7db-4725-b85b-9961575b441f",
  "selected": false,
  "name": "testAttribute",
  "displayName": "testAttribute",
  "description": "testing put-attribute",
  "dataType": "STRING",
  "status": "ACTIVE",
  "lifetime": null,
  "sourceAttribute": null,
  "salt": null,
  "nameIdType": null,
  "origin": null,
  "editType": [
    "ADMIN",
    "OWNER"
  ],
  "viewType": [
    "ADMIN",
    "OWNER",
    "USER"
  ],
  "usageType": null,
  "claimName": null,
  "seeAlso": null,
  "saml1Uri": null,
  "saml2Uri": null,
  "urn": null,
  "scimCustomAttr": null,
  "oxMultiValuedAttribute": false,
  "custom": false,
  "requred": false,
  "attributeValidation": null,
  "tooltip": null,
  "jansHideOnDiscovery": null
}

Delete Attributes#

For any reason, If it needs to delete any attribute, you can do that simply using its inum value. See below example, just change the inum value with one that you want to delete.

/opt/jans/jans-cli/config-cli.py --operation-id delete-attributes-by-inum --url-suffix inum:b691f2ab-a7db-4725-b85b-9961575b441f

Patch Attributes#

This operation can also used for updating an existing attribute by using its inum value.

Operation ID: patch-attributes-by-inum
  Description: Partially modify a GluuAttribute.
  url-suffix: inum
  Schema: Array of /components/schemas/PatchRequest

If we look at the description, we see that there is a schema file. Let's get the schema file with below command:

/opt/jans/jans-cli/config-cli.py --schema /components/schemas/PatchRequest > /tmp/patch.json

# cat /tmp/patch.json

{
  "op": "add",
  "path": "string",
  "value": {}
}

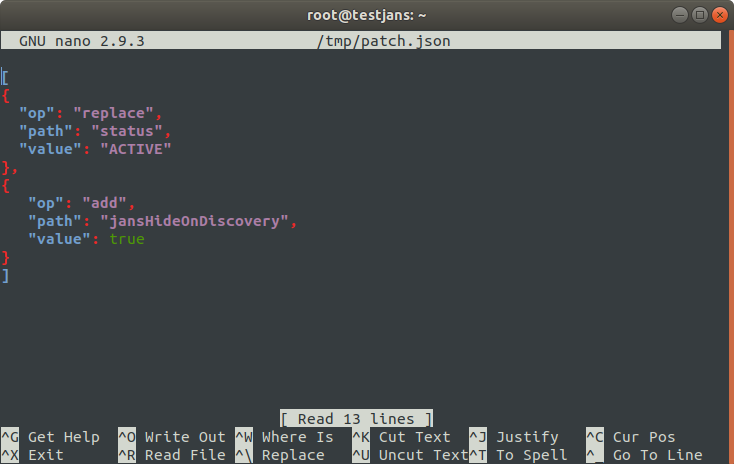

Let's modify this schema file to change the status of an attribute as below:

In the above image, added two tasks. To know more about how we can modify this schema file to perform a specific task, follow this link: patch-request-schema

Let's update an attribute by its inum value. In our case, inum: 6EEB. Before patching the selected attribute, you can check its properties using get-attributes-by-inum operation.

Before patching the attribute, its properties are:

{
  "dn": "inum=6EEB,ou=attributes,o=jans",
  "inum": "6EEB",
  "selected": false,
  "name": "l",
  "displayName": "City",
  "description": "City",
  "dataType": "STRING",
  "status": "INACTIVE",
  "lifetime": null,
  "sourceAttribute": null,
  "salt": null,
  "nameIdType": null,
  "origin": "jansCustomPerson",
  "editType": [
    "USER",
    "ADMIN"
  ],
  "viewType": [
    "USER",
    "ADMIN"
  ],
  "usageType": null,
  "claimName": "locality",
  "seeAlso": null,
  "saml1Uri": "urn:mace:dir:attribute-def:l",
  "saml2Uri": "urn:oid:2.5.4.7",
  "urn": "urn:mace:dir:attribute-def:l",
  "scimCustomAttr": null,
  "oxMultiValuedAttribute": false,
  "custom": false,
  "requred": false,
  "attributeValidation": null,
  "tooltip": null,
  "jansHideOnDiscovery": null
}
According to the schema file, There should be two changes, status and jansHideOnDiscovery. Let's perform the operation:

/opt/jans/jans-cli/config-cli.py --operation-id patch-attributes-by-inum --url-suffix inum:6EEB --data /tmp/patch.json

The updated attribute looks like:

Getting access token for scope https://jans.io/oauth/config/attributes.write
Server Response:
{
  "dn": "inum=6EEB,ou=attributes,o=jans",
  "inum": "6EEB",
  "selected": false,
  "name": "l",
  "displayName": "City",
  "description": "City",
  "dataType": "STRING",
  "status": "ACTIVE",
  "lifetime": null,
  "sourceAttribute": null,
  "salt": null,
  "nameIdType": null,
  "origin": "jansCustomPerson",
  "editType": [
    "USER",
    "ADMIN"
  ],
  "viewType": [
    "USER",
    "ADMIN"
  ],
  "usageType": null,
  "claimName": "locality",
  "seeAlso": null,
  "saml1Uri": "urn:mace:dir:attribute-def:l",
  "saml2Uri": "urn:oid:2.5.4.7",
  "urn": "urn:mace:dir:attribute-def:l",
  "scimCustomAttr": null,
  "oxMultiValuedAttribute": false,
  "custom": false,
  "requred": false,
  "attributeValidation": null,
  "tooltip": null,
  "jansHideOnDiscovery": true
}

As you see, there are two changes.
